SucceBuy Hydraulic Steering Cylinder 150HP HC4645H Front Mount Hydraulic Outboard Marine Steering Cylinder Fit for Boat Steering

SucceBuy Hydraulic Steering Cylinder 150HP HC4645H Front Mount Hydraulic Outboard Marine Steering Cylinder Fit for Boat Steering

$225.99 USD
$0.00 USD $225.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Applicable: Up to 150HP

Brand Name: SucceBuy

Cylinders: HC4645H

Hign-concerned Chemical: none

Origin: Mainland China

Replaces: Marine HC4645H

Volume: 117CC

Product Description

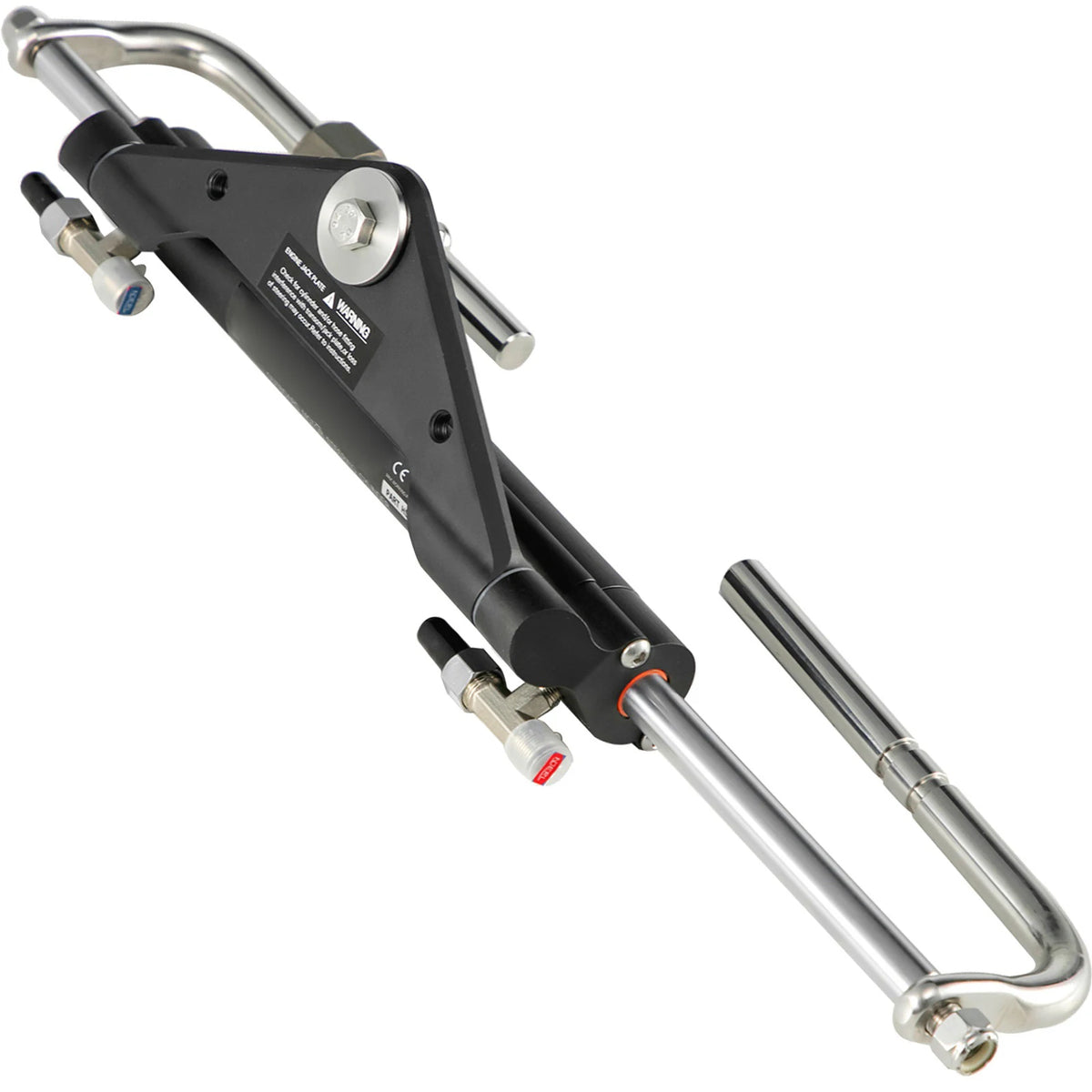

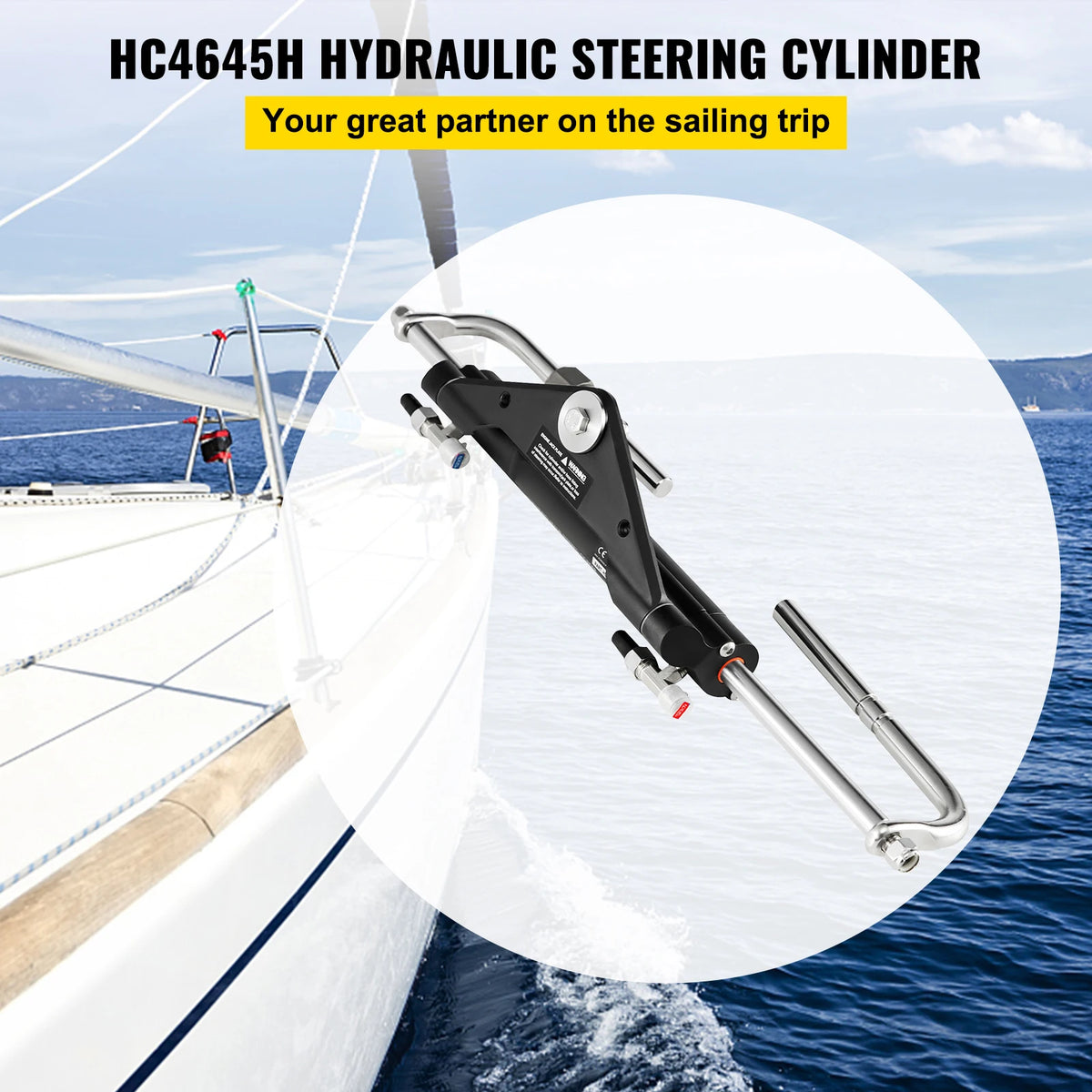

Hydraulic Outboard Steering Cylinder
HC4645H & Front Mount & Up to 150HP

  • The hydraulic steering cylinder for single-outboard powered boats rated up to 150 HP. It offers excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. It is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more.

  • More options about hydraulic helms, cylinders, hydraulic helm kits, please click here.

  • HC4645H Front Mount Cylinder

  • Advanced Crush Resistance

  • Built-In Two-Way Lock

  • ORB Fitting

  • Sturdy Aluminum Alloy

Tough Equipment & Tools, Pay Less
SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose SucceBuy?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
Powerful Performance
The hydraulic steering cylinder working pressure of up to 10.3Mpa/1500psi. Its made for boats rated to handle a maximum of 150 HP.

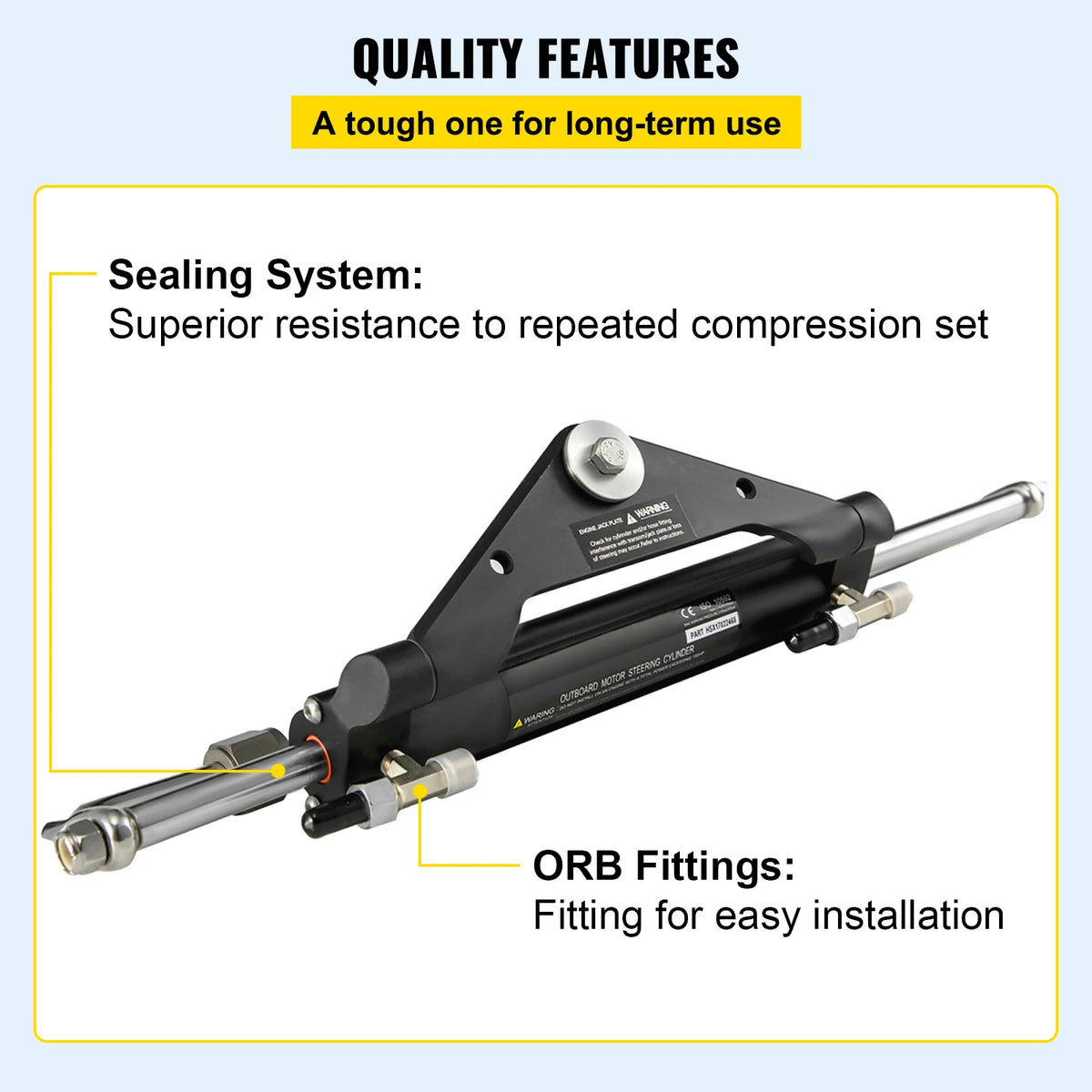

Advanced Crush Resistance
The state of the sealing system provides superior resistance to repeated compression set and is designed to better withstand the harsh environment.

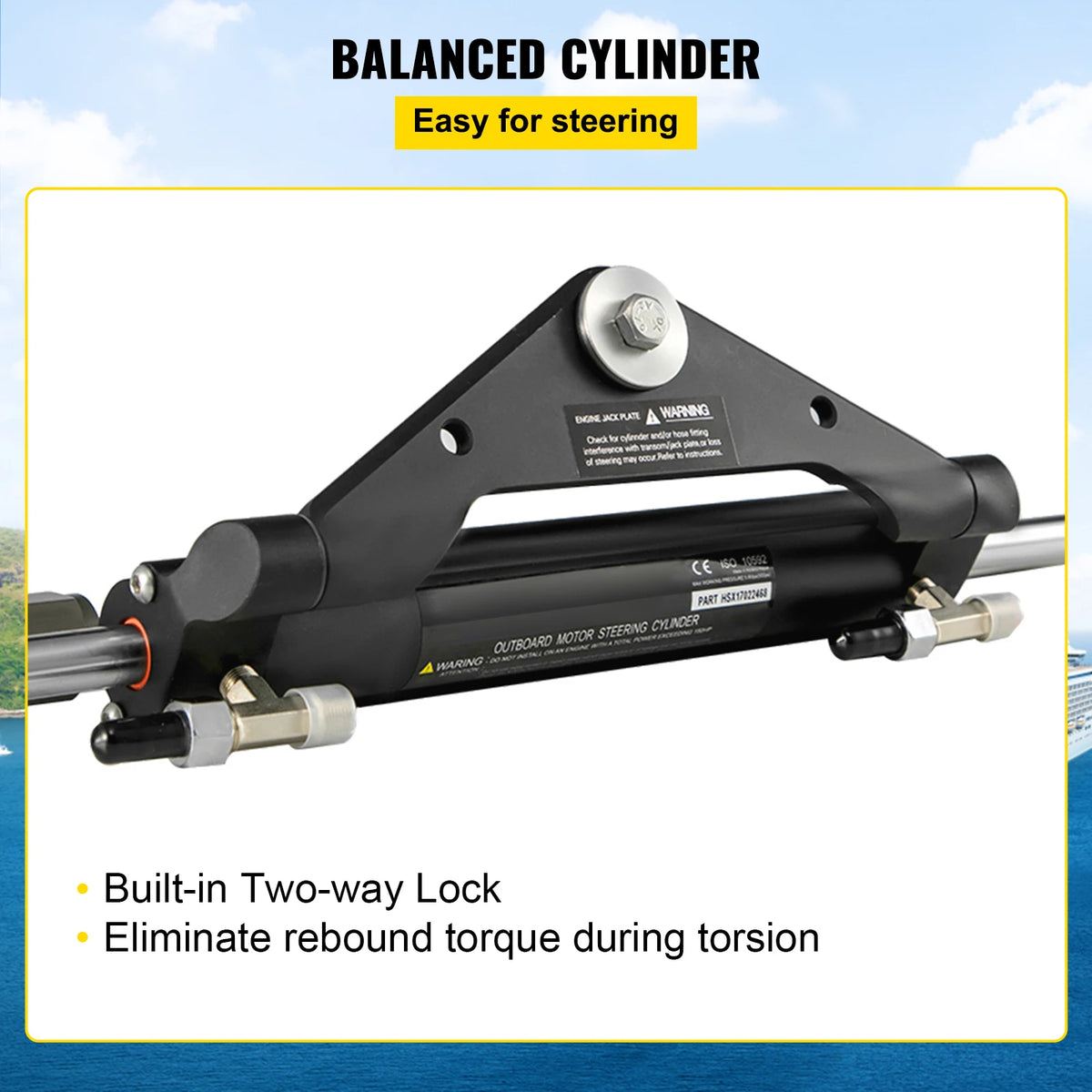

Built-In Two-Way Lock
The cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
Positionable O-Ring (ORB)
Our steering cylinder includes Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.

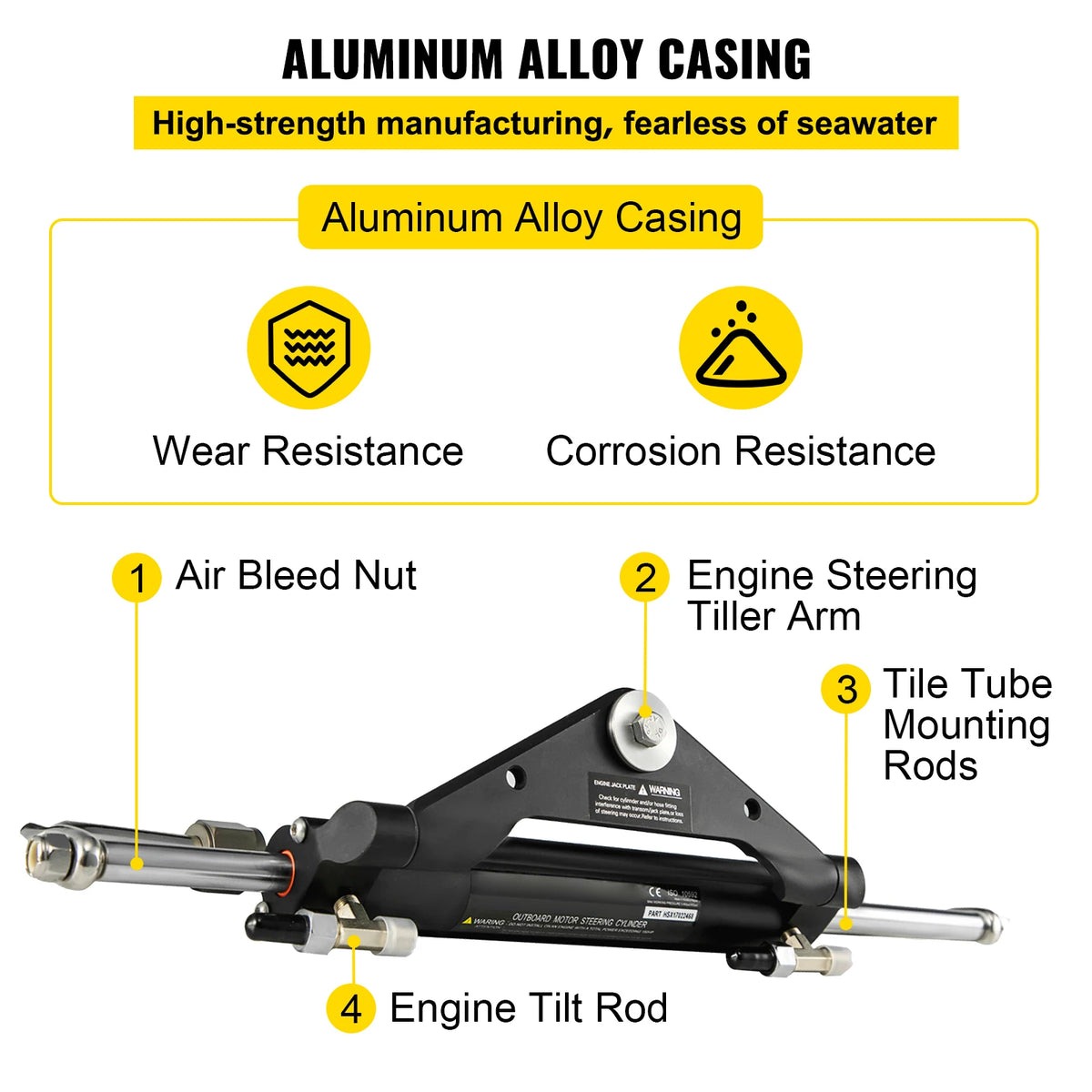

Aluminum Alloy Casing
High-strength aluminum alloy casing and surface treatment process to ensure wear resistance and corrosion resistance.
Wide Application
The HC4645H steering cylinder is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more.

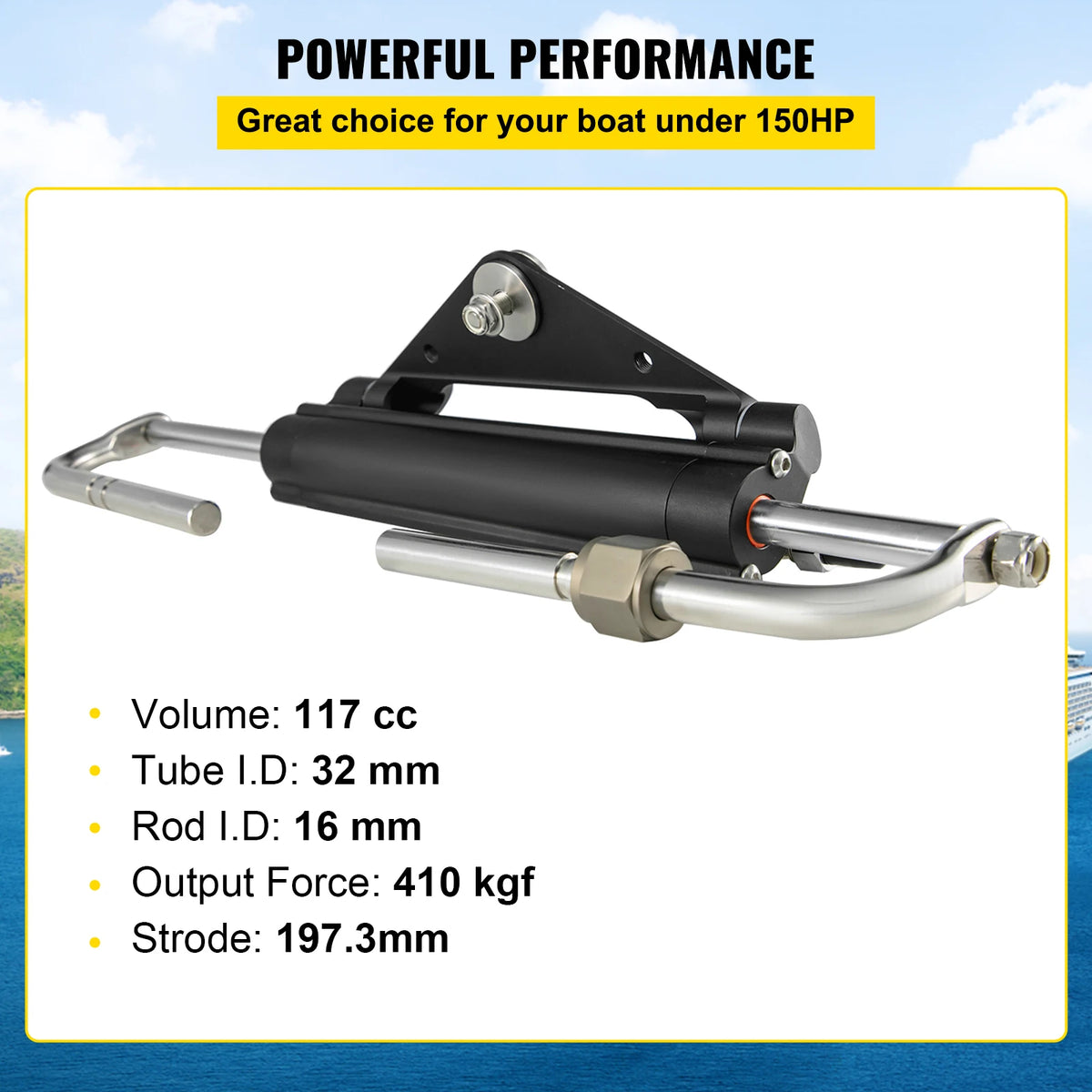

Specifications

  • Cylinders: HC4645H

  • Applicable: Up to 150HP

  • Volume: 117CC

  • Tube I.D: 32mm

  • Rod I.D: 16mm

  • Output Force: 409.7kgf

  • Strode : 197.3mm

Package Content

  • 1 x Outboard Steering Cylinder

  • 2 x Hose

Features & Details

  • HC4645H Front Mount Cylinder: HC4645H steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.

  • Advanced Crush Resistance: Our hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment.

  • Built-In Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.

  • ORB Fitting: The Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing. And we put two extra tubes for easy installation and replacement.

  • Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Enjoy the steering helm for years to come.
